I       Introduction

The IDM MCC6000 Portable Integrated Communication Command Platform is a comprehensive solution designed to meet the demands of emergency communication, field command, and dispatch operations. The platform integrates multiple communication modes and technologies to provide a robust and flexible command solution in various environments. It is especially suitable for use in emergency rescue, military operations, public security, firefighting, and other fields requiring rapid deployment and reliable communication.

II       Functional Features

(1). Mobile Portable Case: The system integrates various communication transmission methods, provides terminal access services, and offers multiple voice communication dispatch functions and audio-video dispatch functions in one unit.

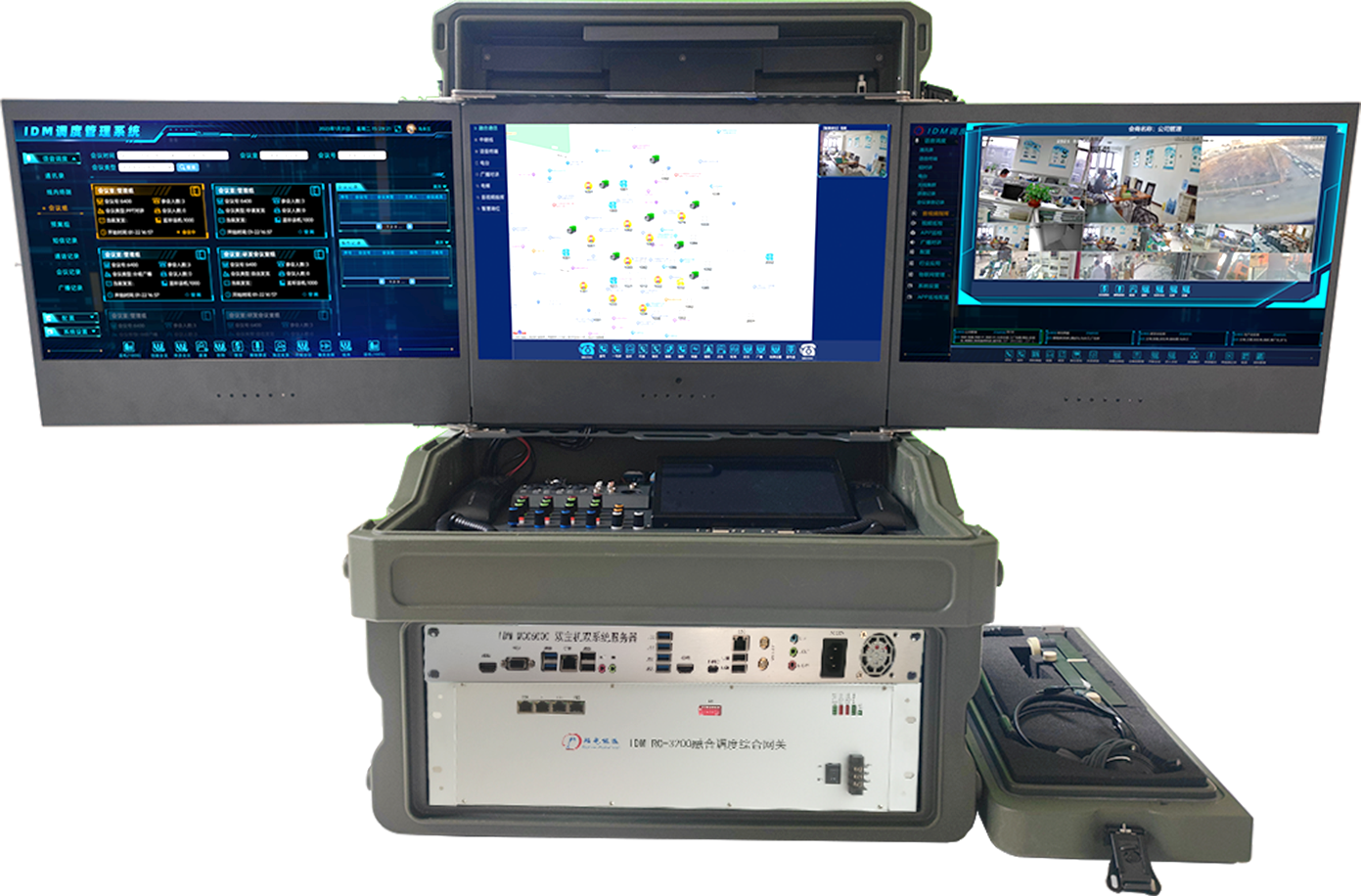

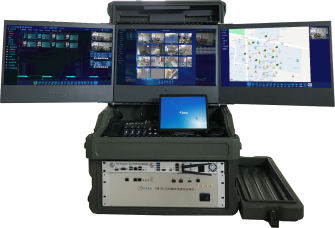

(2). One Device, Four Screens: The system supports video monitoring, conferencing, command, and output; dispatch console operations; GIS, and visual data display.

(3). Upstream Communication Access: Provides four SDH optical ports, preset to 2.5G, 622M, 155M, with one spare interface that can be configured to any speed; optical port rates are configurable. It can provide four sets of Gigabit EOS interfaces; 2.5G SDH can offer line-speed Gigabit network bandwidth. The SDH equipment provides FXO, FXS, EM2/4-wire audio, magneto telephone, 2100Hz magneto, and RS232/RS485/RS449, X.21, X.58, V.35/V.36, and other synchronous and asynchronous interfaces; supports local fiber optic ring network access.

(4). Upstream Communication Access: Can provide regional broadband wireless access.

(5).  Upstream Communication Access: Can provide covered line broadband communication access.

(6). Local Switching Capability: Offers E1 digital trunk interface, including No.7 signaling, PRI signaling; supports up to 20 concurrent online business lines.

(7). Local Audio and Video Capability: Supports 8 groups of 4-way video conferencing; supports RTMP, RTSP streaming services.

(8). Audio Terminals: Supports standard telephones, IP phones, handheld device apps, network broadcasting, network intercom, etc. Supports radio gateways, trunked network gateways, SMS gateways; video terminals support handheld device apps, PC webcams, PC screens or windows, GB28181 cameras, ONVIF cameras, etc. Also supports local IoT terminal access and IoT information provided by audio and audio-video terminals.

(9). HDMI Integrated Video Output Interface: Allows the dispatch console's organized display content to be output to large screens.

III      Typical Application Scenarios

Solution Features:

(1). Vehicle-Mounted Mobile Integrated Communication Command Center: Establishes a mobile command center through a 5G private network, 4G LTE private network, radio, covered lines, and multifunctional fiber access to the ground service network. During critical times, it can also access the ground service through the operator's LTE network.

(2). HD Visual Dispatching: Achieves high-definition visual dispatching for individual terminals, vehicle-mounted terminals, and the command center. It is also compatible with the existing video surveillance systems, video conferencing systems, central control systems, alarm systems, broadcasting systems, and IoT monitoring systems of various units. This integration of multiple communication methods assists command and dispatch personnel in utilizing multimedia to perform command and dispatch tasks while enabling a high degree of integration with various business systems, enhancing the intelligence and automation of command and dispatch operations.

(3). Local LTE Private Network Access: Supports the access of self-built LTE private networks for local users and can also connect to the existing local dedicated trunked communication networks.

(4). Local Command and Dispatch Capabilities: Provides local command consoles, local large-screen display, and local amplification output.

(5).  Local Command Telephone Access Services: Offers access services for local command telephones and more.
