I       Product Overview

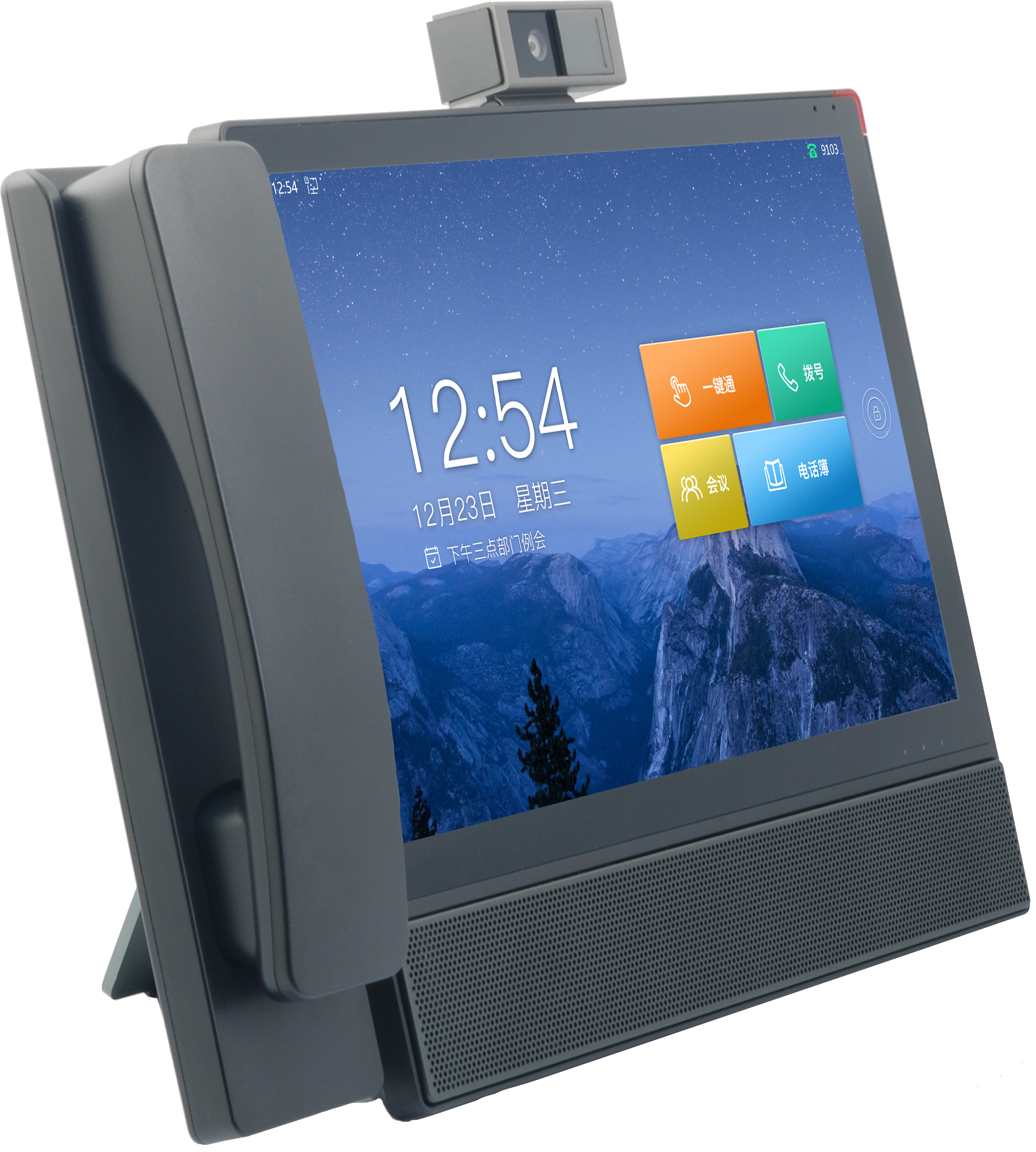

The MCC200H Integrated Communication Terminal is a dual-mode communication device based on the Android operating system, combining both analog PSTN and VoIP technologies. It is a high-tech smart multimedia communication terminal that integrates IP video conferencing, business card management, corporate directory, video calls, and industry-specific application software. The terminal also supports the installation of mainstream video conferencing apps available in the market, allowing users to connect to third-party conferencing systems to host or participate in meetings.

II       Product Features

(1). In-Built Conference Room Function: Host 4-way video conferences at any time, with audio integration during video conferences, supporting up to 10 participants in mixed audio-video meetings.

(2). HD Video Calls: Equipped with an ultra-high-definition camera for image capture and high-definition display. HDMI output is supported.

(3). Intelligent Hierarchical Contact Directory: The organizational structure of the unit is clearly presented.

(4).  Multi-Function One-Touch Expansion Panel: Convenient and user-friendly.

(5).  One-Touch Contact Access: Operate like a dispatch console with one-touch dialing.

(6).  Display Contact Status: Shows the status of frequent contacts: idle, ringing, or in-call.

(7).  Recording Capability: Supports local recording of up to 1,000 hours, with SD card expansion.

(8). User-Friendly Do Not Disturb Function: Automatically resumes at a preset time.

(9). Intelligent Outbound Dialing: Suitable for industries such as power, military, and railways, with built-in dialing rules for these sectors.

(10). Customizable Call Log Storage: Supports storing up to 6,000 call records.

(11).  Supports Storage of 100,000 Business Cards: Capable of storing up to 100,000 business cards locally.

III       Functional Parameters

(1).       Audio Features

u       Audio Codecs: G.722, G.711A/U, G.729, iLBC, Opus

u       Audio Formats: WAV, MP3, OGG

u       AEC: Automatic Echo Cancellation

u       VAD: Voice Activity Detection

u       AJB: Adaptive Jitter Buffer

u       PLC: Packet Loss Concealment

u       CNG: Comfort Noise Generation

u       AGC: Automatic Gain Control

(2).       Video Features

u       Camera: 2-megapixel camera (adjustable angle), with physical privacy cover

u       Video Codec: H.264

u       Video Call Resolution: 1080P, 720P, VGA, 4CIF, CIF

u       Video Display: Picture-in-Picture (PIP), full screen of the other party

u       Image Formats: JPEG, PNG, BMP, GIF

u       Video Formats: MP4, 3GP, FLV

u       Bandwidth Options: 128Kbps-2Mbps (adaptive adjustment)

u       Frame Rate Options: 10-30fps (depending on hardware)

(3).       Supported Protocols

u       SIP Protocol: SIP (RFC2543), SIPv2 (RFC3261)

u       IP Address Allocation Modes: Supports static and DHCP, supports IPv6

u       VLAN Support

u       DNS: DNS (A record, SRV, NAPTR)

u       Web Server: HTTP, HTTPS

u       Real-Time Transport Protocols: RTP, RTCP

u       Wireless Wi-Fi Protocol

u       Network Protocols

u       TR069 Support

u       802.1x Protocol Support

(4).       Phone Features

u       Call Logs, Business Card Management, Corporate Directory, Internet Directory

u       Recording Logs: (All, Missed, Dialed, Received, Transferred)

u       Mute Function During Calls

u       Blacklist/Whitelist Settings

u       Customizable Screensaver

u       Do Not Disturb Setting

u       Ringer Silencing

u       PSTN (1 external line, 1 extension), VoIP (4 accounts)

u       Call Waiting, Call Hold, Call Transfer, Call Forwarding

u       Intercom Function

u       Direct IP Dialing

u       Call Pickup

u       Group Pickup

u       Supports Incoming Call Voice Announcements

u       Busy Lamp Field (BLF)

u       Adjustable Call Volume

u       Dialing Rules Support

u       Recording Storage: Local or SD card, recording management permissions, forced recording option

u       Built-in Video Conferencing: 4-way video conference, 10-way mixed audio-video conference

u       One-Touch Access: Supports up to 30 groups, 2,160 programmable keys, one-touch skin change, drag-and-drop sorting, data import/export support

u       Factory Reset, Restart: Supported

u       Time Setting: Manual, Automatic

u       Ringtone Setting: Supported

u       Wallpaper Setting: Supported

u       Font Size: Supported

u       Video Watermark Support

u       Video Mirroring Support

u       Web Access Authorization Support

u       Application Uninstallation Support

u       Bluetooth Calling Support

u   Wireless Screen Projection Support
