IDM GE STM-1 converter datasheet

IDM GE/STM-1 converter

1.  Description

IDM GE/STM1 is Intelligence gathering type bridge base on the large capacity Ethernet line access requirements, It can achieve 63groups E1 to Ethernet converge. IDM GE/STM1 connect SDH transmission equipment directly. Can divide 1-63 channels as the different bandwith, Our product reduce operator network construction and maintenance costs,  enhance the private network response ability, ensure customer end-to-end analysis ability, Implementation customer monitoring of the entire network.

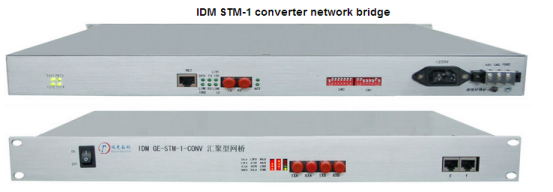

2.  Product pictures

3.  Product functions

1. STM-1 interface can mapping 63E1, Support 1 ~ 63 channels configured arbitrarily divided, Per channel compose by one E1 or 4, 8or 16E1, support 63 single E1 protocol converter, 15*4E1 protocol converter, 7*8E1 protocol converter, 3*16E1 protocol converter

2. Allow two E1 frame sequence maximum propagation delay difference of 64ms in the channels.

3. Offer console interface and SNMP interface, Easy to maintain, can achieve full network unified network management

4. Provide 2 STM-1 interface, working on SDH looped network, Chain network, also support 1+1 protected.

5. Provide  2 GE interface(one optical port and one electrical port)

6. Can divide bandwidth automatic according to the E1 number. support E1 asymmetrical transmission

7. High compatibility, support single/multi E1 network bridge from different manufacturer as  remote device hybrid networking applications

8. Use Standard 19 inch 1 U case, Double power supply redundancy design, Ease of maintenance, can achieve unified network management

4. Product model
