IDM GP2400-8E1-30

Description

IDM GP2400-8E1-30 equipment uses the optical transmission bandwidth of 2.5G (G.703 standard), adopt PCM30/31 system and can support dual fiber mutual backup, support directly telephone business ports(total 30 channels FXO, FXS, or magnet), 4 groups physical separation 100M Ethernet, 2 groups physical separation 1000M Ethernet ports (total 2000M), E1 (1-8 E1 ports), HDMI HD video transmission interface and so on. At the same time, the device has simple installation, can be applied to a variety of application.

Pictures

$C:\Users\Administrator\AppData\Roaming\Tencent\Users\1632334951\QQ\WinTemp\RichOle\0BAS[$DOI{5H}O}`G_ZNN`B.png$

$C:\Users\Administrator\AppData\Roaming\Tencent\Users\1632334951\QQ\WinTemp\RichOle\P70DCEV1~Q`GDY1UPL`}KMM.png$

Product function

Standard 19” 1U chassis, easy to install.

Support 2*SFP optical ports(2.5G), optical 1+1 protection.

Provide standard 30 channels phone business interfaces

Provide two physical separation 1000M Ethernet ports

Provide four physical separation 100M Ethernet ports

Provide 8 groups E1 ports, support transparent transmission mode

Provide standard SNMP network management port

Provide perfect function control and Alarm indication function

Provide two pluggable power module, can provide ~220V and -48V power supply

Technology parameter

Optical interface

Interface type	SFP	Fiber mode	Single mode(Optional dual mode
Fiber rate	2.5G	wavelength	1310nm/1550nm
Luminous power	-1~-3dBm	Receive sensitivity	Better than -24dBm

E1 interface

Code rate	2048Kbps	Code type	HDB3
Standard protocol	Support ITU-T G.703	Impedance	75Ω/120Ω
Frame structure	PCM30/31	Mode	Transparent transmission

Ethernet ports

Interface type	RJ45	Transmission rate	10M/100M/1000M
Standard protocol	Support IEEE802.3	Working mode	Full / half duplex / adaptive

FXO/FXS interface

Audio range	300Hz~3400Hz	Impedance	200Ω+560Ω//0.1μF
compression ratio	ITU G.711 in A Law	Loop current	25Ma/channel

Power supply

Power supply

DC-48V/AC 220V/ Dual power supply

Consumption

<=100W

Environment

Temperature

0ºC～40ºC

humidity

<=90% (No condensation state)

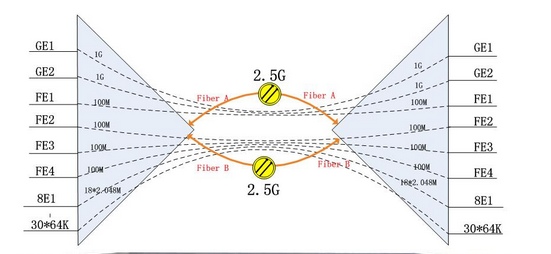

Application
