IDM- CH GP2400-16E1 Order Wire PDH high speed fiber transmission

IDM-CH GP2400 16E1

Description

CH GP2400 Order Wire PDH is based on high speed fiber transmission, Gigabit Ethernet transmission correlates, 100M Ethernet transmission, E1 business transmission in a whole. It can meet the demand for optical fiber transmission and access of the users. CH GP2400 16E1 provides 16E1, 4 channels 100M Ethernet, 2 channels 1000M Ethernet interface. Provide SNMP network management port. Support point to point, chain network. Perfect alarm monitor function, high integration, low power consumption, stable performance, easy to use.

Product function

a. Chassis structure using 19 inch standard 1U chassis

b. Supports 2 channels 2.5Gpbs optical transmission interface, SFP optical module interface

c. Maximum support 16 E1 interface, E1 interface is 75Ω or 120Ω optional

d. Support 2 groups physical separation 1000M Ethernet, each group bandwidth can be set.

e. Can provide 4 groups of 100M Ethernet interface

f. The transmission distance of standard model is 40 km; over the transmission distance can be customized

g. SNMP network management interface based on IP

h. DC-48V and AC220V, can choose DC+DC, AC+AC, AC+DC dual power supply

i. Support order wire.

Specification

Optical Interface

E1 Interface

Ethernet interface

Power and consumption

Working environment

 Size

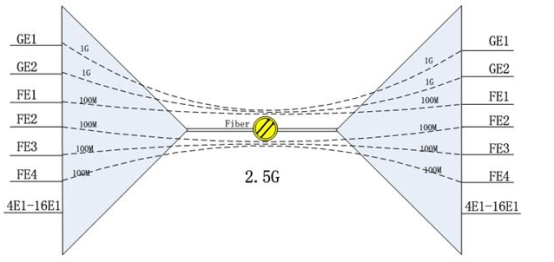

Application
