IDM MSAP155-24 Data sheet

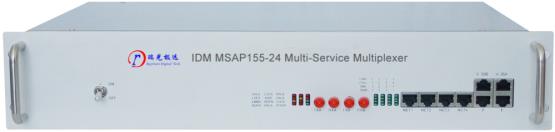

24E1 SDH Multiservice Access Platform IDM MSAP155-24

Overview

IDM MSAP155-24 SDH/MSAP Multiplexer is a newly-developed optical fiber transmission equipment by RDT company based on SDH technology. IDM MSAP155-24 SDH MUX manages to satisfy not only users needs, and other fiber optical transmission/access services, but also users needs for and more reliable . IDM MSAP155-24 SDH optical multiplexer can be directly connected to the remote PDH multiplexer, optical modem and multi-service multiplexer and so on, IDM MSAP155-24 fits a variety of environment . IDM MSAP155-24 STM-1 grade SDH multiplexer can be used as a small MSAP equipment which integrates multiservice access, SDH transmission and PDH optical access functions. It also provides succinct and faultless which would carry out equipment configuration, data collecting and real-time monitoring on network performance.

Feature

v Two STM-1 optical interfaces with 1+1 redundancy. (Either one fails, the other will back it up).

v Two V.35/V.11 [N × 64K (N = 0 ~ 31)] channels.

v Integration of SDH, PCM, PDH and Ethernet.

v Provide up to 4 Ethernet networks with physical isolation, to achieve N × 2.048Mbps bandwidth.

v Provide 6 slots, can insert 8E1 card, 8 FXO/FXS card, 8 RS232/RS485/RS422 card., Ethernet card, E&M, Magnet, Hotline etc.

v Modular configuration and is upgradeable.

v Support point-to-point, chain-shaped and ring network.

v Compliance with the ITU-T G.813 standards and fully meet the timing accuracy.

v Faultless feature, online real-time monitoring.

v Standard 19-inch 2U chassis structure, easy to install.

Specification

Optical interface

Rate	155Mbps±4.6ppm	Adaptive fiber	Single/Multi-mode
Consumption	-15 ~ -8dBm	Wavelength	1310nm/1550nm
Physical connector	FC/SC	Sensitivity	Better than -32dBm

E1 interface

Rate	2048Kbps	Code	HDB3
Comply with	ITU-T G.703 standard	Impedance	75Ω
Frame structure	PCM30/31	signaling	Inbound Signaling
Channels	Up to 24

Ethernet interface

Rate	N × 2.048MbpsN≤50	Duplex	Full/Half auto-negotiation
Physical connector	RJ-45	Comply with	IEEE802.3

FXO/FXS interface

Impedance	200Ω + 560Ω//0.1μF	Audio frequency range	300Hz ~ 3400Hz
Compression ratio	Class A in ITU G.711	Loop current	25mA

EM2/4 interface

Audio frequency range	300Hz ~ 3400Hz	Compression ratio	Class A in ITU G.711
Echo loss	>18dB	Impedance	600Ω balanced

V.24 interface

Rate

asynchronous <=9600bps

and asynchronous 64kbps

Comply with

CCITT V.28

V.35 interface

Rate	N × 64KbpsN=0 ~ 31	Comply with	ISO2593
Physical connector	RJ-45	Comply with	ITU-T V.35

Power Supply

220VAC/- 48VDC

Consumption: ≤50

Operating environment

Temperature

-30oC~ 50oC

Humidity

0 ~ 95% (non--coagulation)

Card Board List

Name	Describe	Picture
3U-8ETH	Provide 8 channels Ethernet service.	$C:\Users\aa\Desktop\3U盘\8路以太网交换盘.jpg$
3U-WG300	Provide 2 channels E1 digital signaling access from local site or remote site, Provide No.1, No.7, PRI, V5.2 signaling access, used in MUX series device. Provide telephone access or PABX function.	$C:\Users\aa\Desktop\3U盘\信令接入盘.jpg$
3U-8USER	Provide 4 slots, can insert PCM 64K business card.	$C:\Users\aa\Desktop\3U盘\通用用户接口盘.jpg$
3U-8E1	Provide 8E1 interface	$C:\Users\aa\Desktop\3U盘\8E1.jpg$
3U-8MVOICE	Provide 8 channels 64K business, can set FXO/FXS, Magnet, 2100Hz magnet by network management system.	$C:\Users\aa\Desktop\3U盘\多功能转换业务盘.jpg$
3U-10FXS	Provide 10 FXS interface	$C:\Users\aa\Desktop\3U盘\FXS.jpg$
3U-10FXO	Provide 10 FXO interface	$C:\Users\aa\Desktop\3U盘\FXS.jpg$
3U-4EM2/4VOX	Provide 4 channels 2/4 wire audio, gain margin: ∞∞, Adjusting: °dB	$C:\Users\aa\Desktop\3U盘\EM24线音频盘.jpg$
3U-8V.24	Provide 8 channels V.24 interface, can set RS232/RS485/RS422 business, V.24 interface can be Asynchronous rate adaptive interface: 0～19200bps, also can be DCE mode synchronous interface: 300, 600, 1200, 2400, 4800, 9600, 64Kbps etc.	$C:\Users\aa\Desktop\3U盘\EM24线音频盘.jpg$
