IDM OMP2000-8E1-30 optical fiber transmission PDH Optical Multiplexer
IDM OMP2000-8E1-30
1.Description
IDM OMP2000-8E1-30 device uses standard optical fiber transmission channel (G.703 standard), uses PCM30/31 standard, can be used for dual fiber mutual backup, directly provides 64K service interface, line speed 1000M Ethernet, E1 and other user interface. At the same time, the equipment has a simple installation, can be applied to a variety of application environment needs.

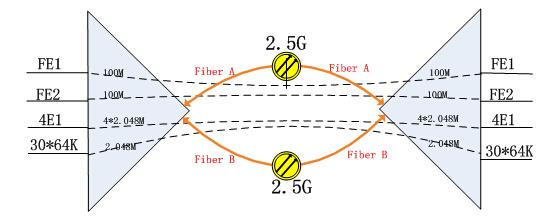

2. Picture
3. Product character
Standard 19 inch 1U chassis architecture for easy installation
Provide 2* 2.5Gbps SFP optical interface, can provide 1+1 protection
Provide 30*64K interfaces.
Provide 2*1000M (physical isolation) Ethernet ports
Provide 8 groups E1 interfaces, transparent transmission mode.
Provide standard SNMP interface
Provide perfect function control switch and alarm indication function.
4. Technology parameter
Optical interface
|
Interface type |
SFP |
Fiber mode |
Single mode |
|
Fiber rate |
2.5Gbps |
Wavelength |
1310nm/1550nm |
|
Luminous power |
-1~-3dBm |
Receiver sensitivity |
Better than -24dBm |
E1 interface
|
Code rate |
2048Kbps |
Code type |
HDB3 |
|
Standard protocol |
ITU-T G.703 |
Impedance |
75Ω/120Ω |
|
Frame structure |
PCM30/31 |
Mode |
Transparent transmission |
Ethernet interface
|
Interface type |
RJ45 |
Transmission rate |
10M/100M/1000M |
|
Standard protocol |
IEEE802.3 |
Working mode |
Full / half duplex / adaptive |
FXO/FXS interface
|
Audio range |
300Hz~3400Hz |
Impedance |
200Ω+560Ω//0.1Μf |
|
Compression ratio |
ITU G.711 |
Loop current |
25mA/channel |
Power and consumption
|
Power supply |
DC-48V/AC 220V/dual power supply |
Consumption |
<=100W |
Environment
|
Temperature |
0ºC～40ºC |
Humility |
<=90% (no condensation) |
