IDM OMP200-30E optical fiber transmission PDH Optical Multiplexer
IDM OMP200-30E
|
Overview |
IDM OMP200-30E uses standard optical fiber transmission channel (G.703 standard), adopts PCM30/31 standard. It can provide a dual fiber mutual backup, directly provide voice, line speed 100M Ethernet, E1 and other user interface. At the same time, the equipment has a simple installation, can be applied to a variety of application environment needs.
|
Feature |
v Standard 19” 1U chassis, easy to install
v Provide 2*SFP optical interface(250M), support dual fiber 1+1 protection
v Support standard 30 channels telephone
v Support 2*100M Ethernet(physical isolation)
v Support 4E1 interface ,transmission transparent
v Support standard SNMP interface
v Support perfect function switch and alarm indication function
|
Specification |
Optical interface
|
Physical connector |
SFP |
Mode |
Single mode/Multi-mode |
|
Rate |
250M |
Wavelength |
1310nm/1550nm |
|
Consumption |
-2~-3Bm |
Sensitivity |
Better than -24dBm |
E1 interface
|
Physical connector |
BNC |
Code |
HDB3 |
|
Compliance |
ITU-T G.703 |
Impedance |
75Ω(By default)/120Ω |
|
Framing |
PCM30/31 |
Transmission |
Transparent transmission |
Ethernet interface
|
Physical connector |
RJ-45 |
Rate |
10/100M Base-T |
|
Compliant with |
IEEE802.3 |
Duplex |
Full duplex/half duplex/ Auto-negotiation |
FXO/FXS interface
|
Loop current |
25mA |
Frequency range |
300Hz~3400Hz |
|
Impedance |
200Ω+560Ω//0.1μF |
Compliance |
ITU G.711 A-Law |
Power supply and consumption
|
Power supply |
DC-48V /AC 220V/Dual |
Consumption |
≤60W |
Working environment
|
Temperature |
0ºC~40ºC |
Humidity |
≤90%( non-condensing) |
|

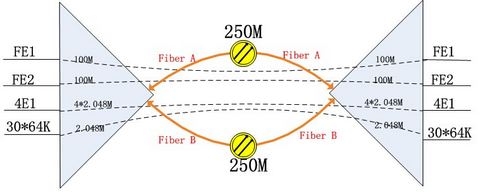

Application |
