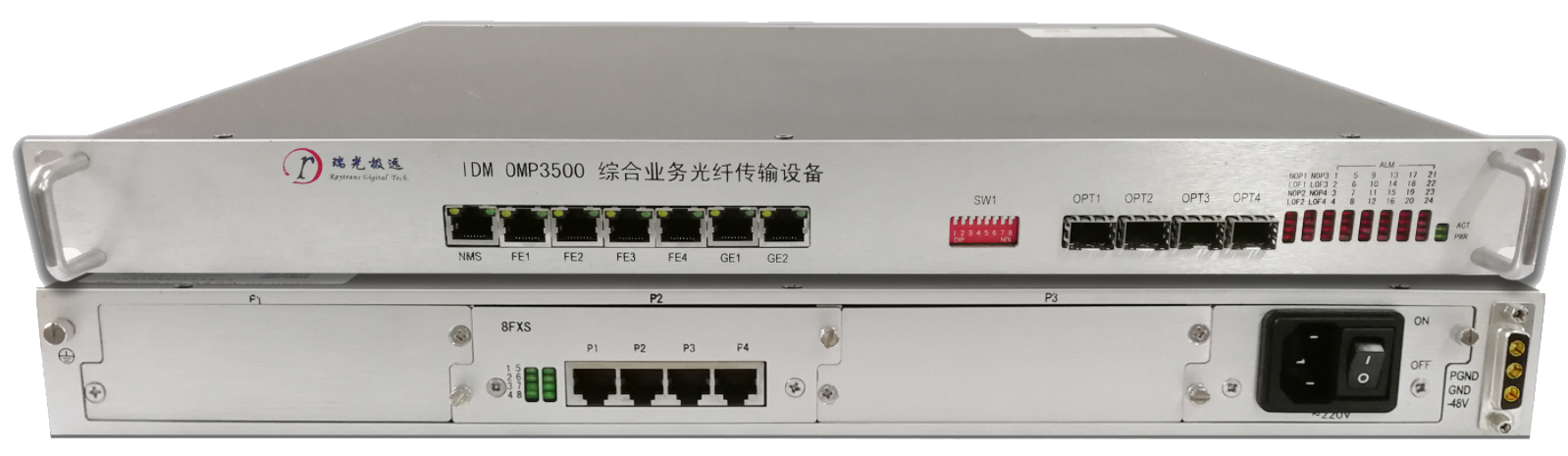

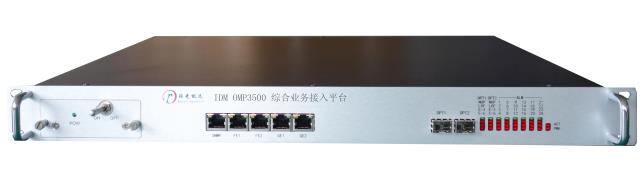

IDM OMP3500-30 PCM Multiplexer Equipment
IDM OMP3500-30
|
Overview |
IDM OMP3500-30 adopts the standard fiber transmission channel (G.703 standard), uses PCM30/31system
.It can support dual fiber backup and provide at most 24 groups E1, 2 channels physical isolation 1000M Ethernet, 4 channels physical isolation 100M Ethernet and at most three kinds of 8 channel/10 channels PCM business inserted disk. It supports standard SNMP software. The equipment has simple installation function, can be applied to a variety of application environment needs.
|
Feature |
v Standard 19”1U housing, easy to install.
v Support 4*2.5G SFP optical interface can be 1+1 backup
v Support at most 24 groups E1, 2*1000M Ethernet (physical isolation), 4*100M Ethernet(physical isolation)
v Centralized device provides standard SNMP network management interface
v Have perfect function control switch and alarm indication function
|
Specification |
Optical interface
|
Physical connector |
SFP |
Mode |
Single mode/Multi-mode |
|
Rate |
2.5G |
Wavelength |
1310nm/1550nm |
|
Consumption |
-1~-3dBm |
Sensitivity |
Better than -24dBm |
E1 interface
|
Code type |
2048Kbps |
Code |
HDB3 |
|
Compliance |
ITU-T G.703 |
Impedance |
75Ω(By default)/120Ω |
|
Framing |
PCM30/31 |
Transmission |
Transparent transmission |
Ethernet interface
|
Physical connector |
RJ-45 |
Rate |
10/100M Base-T |
|
Compliant with |
IEEE802.3 |
Duplex |
Full duplex/half duplex/ Auto-negotiation |
FXO/FXS interface
|
Loop current |
25mA |
Frequency range |
300Hz~3400Hz |
|
Impedance |
200Ω+560Ω//0.1μF |
Compliance |
ITU G.711 A-Law |
Power supply and consumption
|
Power supply |
DC-48V /AC 220V/Dual |
Consumption |
≤60W |
Working environment
|
Temperature |
0ºC~40ºC |
Humidity |
≤90%( non-condensing) |
|
|
