IDM-NT104 datasheet

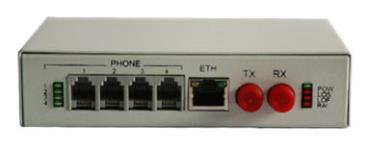

4 channels Multiservice Multiplexer IDM-NT104
Description
IDM-NT104 is a fixed configuration. It transmits 4 channels of FXO/FXS signal and 1 channels of 10/100M Ethernet signal over a pair of fibers (or one single fiber).
Features
l Transmission medium is fiber.
l Fixed configuration, not modular, cost-effective.
l Mini housing, small and compact, not standard 19”1U nor rack mountable.
l 4 channels for telephone with “caller ID display” feature.
l 1 shared 100M Ethernet channels and VLAN available.
l Perfect alarm indication function.
Specification
|
Physical connector |
FC/SC |
Adaptive Fiber |
Single/Dual Mode |
|
Rate |
155bps±50ppm |
Wavelength |
1310nm/1550nm |
|
Consumption |
-2～-11dBm |
Sensitivity |
Better than -36dBm |
Optical interface
Ethernet Interface
|
Physical connector |
RJ-45 |
Rate |
10/100Base-T |
|
Comply with |
IEEE802.3 |
Duplex |
Full/Half duplex/auto-negotiation |
FXO/FXS Interface
|
Audio frequency range |
300Hz~3400Hz |
Impedance |
200Ω+560Ω//0.1μF |
|
Compliance |
ITU G.711 A-Law |
Loop current |
25mA |
Power supply and Consumption
|
Power supply |
AC 220V |
Consumption |
≤350W |
Operating environment
|
Temperature |
0 oC ~+50 oC |
Humidity |
95%( non-condensing) |
Physical parameter
|
Dimension |
17*11*3cm |
Net weight |
3KG |
|
Package dimension |
35*32.7*6.2cm |
Package Weight |
1.6KG (2pcs in a package) |
Application
