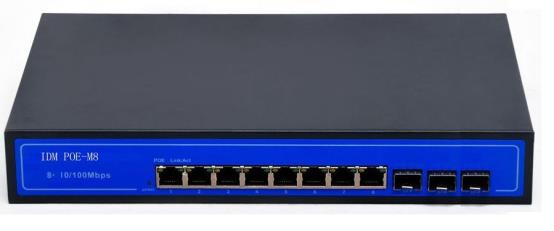

IDM POE-M8 POE Gigabit Ethernet switch

1. Description

IDM POE-M8 POE Gigabit Ethernet switch has 8 POE power supply RJ45 ports, 3*1000M SFP fiber optic module expansion slots and support that the gigabit optic interface forms chain network and tree net. All the 8 RJ45 ports support IEEE 802.3af/at standard POE power supply, it can be VLAN isolation and also can be shared gigabit. The maximum power point is 30        W and the largest power can up to 150W. It can automatically detect and identify the 802.3af/at IEEE standard of electric equipment and also can offer power for the priority through cable.

2. Performance function

1. Support 8*100M RJ45 ports which is adaptive high speed forwarding data without packet loss.

2. Provide 3*1000M SFP ports, to meet the fiber network seamless, you can easily connect to optical fiber backbone network.

3. Each port supports MDI/MDIX auto flip and self negotiation.

4. Support IEEE802.3x full duplex flow control and Backpressure half duplex flow control. POE power supply performance intelligent power management 1~8 ports has POE recognition, such as the power of the device is more than 802.3af IEEE standard, the system automatically start 802.3at IEEE standard, priority mechanism port power supply.

4. According with the standard PD equipment which can offer the automatic detection and identification IEEE 802.3af/at and IEEE 802.3af/at function.

3. Flexible extension

IDM POE-M8 POE gigabit optical fiber Ethernet switch is simple and convenient, without configuration, plug and play, good compatibility, non burning equipment, high-speed transmission, without data packet loss, can be flexible, so the network is not subject to the power supply line layout, save user costs.

 Government agencies, hotels, shopping malls, hospitals and small sized enterprises form an economic and efficient network.

POE network camera monitoring, the POE WIFI coverage, POE network broadcast system, the POE IP distributed splicing screen system, POE intelligent sensor and other applications.

4. Technical parameters

Port 1 to 8 port support IEEE802.3af/at

POE port output power 15.4W/30W IEEE802.3af/at

POE transmission line core 1/2+, 3/6-line (optical 4/5+, 7/8-line)

POE total power <= 150WPoE, the connection standard is IEEE 802.3af/IEEE 802.3at.

POE power transmission distance is less than 200 meters

Network standard IEEE 802.3, 802.3x, 802.3af/at, IEEE802.3u

Network signal transmission distance is less than 100 meters

retransmission storage

Forwarding rate 10BASE-T:14880PPS/port

MAC address table for MAC address 1K

Port function priority mechanism, fast and forward, MAC automatic learning and aging

IEEE802.3X full duplex flow control and Backpressure half duplex flow control

Each port has 1 LINK/ACT.

Working environment temperature: -10°-- 55°C

Input power 50/60HZ AC100-240V

The maximum power 150W (power supply)

Weight 1.7kg size 270mm*180mm*44mm (L*W*H)

5. Application
