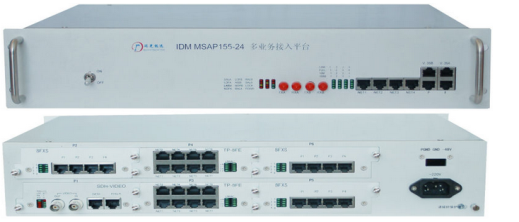

IDM MSAP155-24



Overview

IDM MSAP155-24 is a newly-developed optical fiber transmission equipment by RDT company based on SDH technology. It manages to satisfy not only users needs for , and other fiber optical transmission/access services, but also users needs for and more reliable . It also provides succinct and faultless which would carry out equipment configuring , data collecting and real-time monitoring on network performance. This item also features all of its of industrial grade, comprehensive EMC and interface protection design.








Feature



1. Standard 19-inch 2U chassis structure, easy to install.

2. Two STM-1 optical interfaces with 1+1 redundancy.(Either one fails, the other will back it up)

3. Two V.35/V.11 [N × 64K (N = 0 ~ 31)] channels.

4. Integration of SDH, PCM, PDH and Ethernet.

5. Provide up to 4 Ethernet networks with physical isolation.

6. Provide 6 slots, can insert 8E1 card, 8 FXO/FXS card, 8 RS232/RS485/RS422 card., Ethernet card, E&M, Magnet, Hotline etc.

7. Support networking mode: point to point, chain type, tree type, star type, ring type etc

8. In compliance with the ITU-T G.813 standards.

9. Faultless feature, online real-time monitoring.



Specification



Optical interface

Rate

155Mbps±4.6ppm

Adaptive fiber

Single/multi-mode

Consumption

-15 ~ -8dBm

Wavelength

1310nm/1550nm

Physical connector

FC/SFP

Sensitivity

Better than -32dBm

 E1 interface

Rate

2048Kbps

Code

HDB3

Comply with

ITU-T G.703 standard

Impedance

75Ω/120Ω

Frame structure

PCM30/31

signaling

Inbound signaling

Channels

Up to 24

 Ethernet interface

Rate

N × 2.048MbpsN50

Duplex

Full/Half auto-negotiation

Physical connector

RJ-45

Comply with

IEEE802.3

 FXO/FXS interface

Impedance

200Ω + 560Ω//0.1μF

Audio frequency range

300Hz ~ 3400Hz

Compression ratio

Class A in ITU G.711

Loop current

25mA

 EM2/4 interface

Audio frequency range

300Hz ~ 3400Hz

Compression ratio

Class A in ITU G.711

Echo loss

>18dB

Impedance

600Ω balanced

 V.24 interface

Rate

asynchronous <=9600bps

and asynchronous 64kbps

Comply with

CCITT V.28

 V.35 interface

Rate

N × 64KbpsN=0 ~ 31

Comply with

ISO2593

Physical connector

RJ-45

Comply with

ITU-T V.35

 Power Supply

Power supply

220VAC/- 48VDC

Consumption

50W

 Operating environment

Temperature

-30oC~ 50oC

Humidity

0 ~ 95% (non-coagulation)

 Dimensions

Width × Depth × Height (mm)

440 × 230 × 45
