IDM MSTP155-63E1 2STM1 4Ethernet 63E1 SDH multiplexer

2STM1 4Ethernet 63E1 SDH multiplexer IDM MSTP155-63

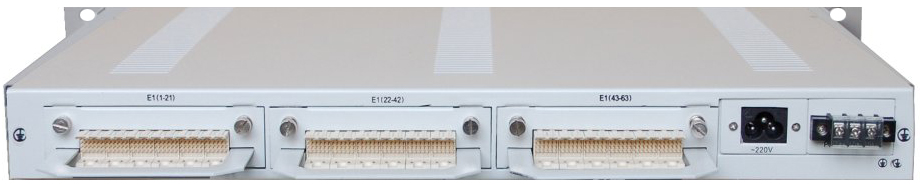

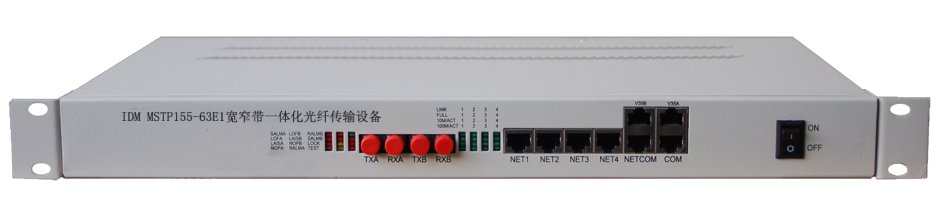

IDM MSTP155-63E1 SDH Add/Drop Multiplexer has two STM-1(155.52Mb/s) optical ports, 63 E1 interfaces, 4 physically separated FE ports with a bandwidth of N*2.048Mbps and two V.35/V.11 ports. IDM MSTP155-63E1 SDH multiplexer can be used not only as a­n add-drop multiplexer (ADM), but also as a termination multiplexer(TM).The simple but practical network management software (NMS) is able to work for equipment configuration, fault diagnosis, data collection and real-time monitoring of network performance.

1. Two STM-1 optical interface, provide optical 1 +1 redundancy.

2. SDH Provide up to 63 E1 interfaces.

3. Two N*64K (N = 0 ~ 31) V.35/V.11 channel.

4. E1, Ethernet, V.35 and voice service optional.

5. SDH Provide 4 physically isolated FE ports, to achieve N × 2.048Mbps bandwidth.

6. Support point-to-point, chain and ring network applications.

7. Comply with the ITU-T G.813 standards and fully meet the timing accuracy.

8. Powerful network management features, online real-time monitoring.

9. Standard 19-inch 1U housing, easy to install.

Optical interface

E1 interface

Ethernet interface

V.35 interface

Power

Operating environment
