IDM-TOP804 datasheet

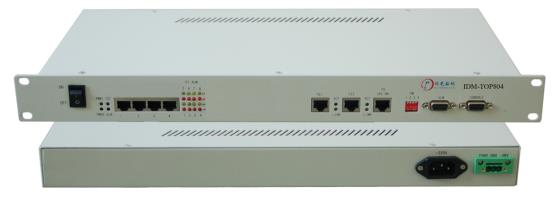

IDM 4E1 TDM over IP converter IDM-TOP804
Description
IDM-TOP804 achieves Pseudo Wire Emulation Edge-to-Edge (PWE3), Conform to IETF, MFA Forum, ITU-T standard, Can be used with other manufacturers equipment. Support 4 groups E1 based TDM business expand to packet-switched networks, through 10/100Base-T or 100Base-FX Link Forwarded to the packet network, TDM services can easily be transfer through a packet network Ethernet, IP network, MPLS network), make packet service switch TDM and build E1/T1 circuit, achieve user E1 port, the data flow of high-speed data port, data package converting. TDM over IP IDM-top804 communication processing is based on hardware, providing high performance. It’s transparent for through E1/T1, So it is easy to configure and maintain.
Features
1. 4E1 TDM business switch packet switching network
2. Support E1 loopback: E1 local loopback and E1 Remote Loopback.
3. Support QoS management, configuring equipment through local manager or remote manager.
4. Clock precision is 16ppb, effectively guarantee the data returned.
5. Clock mode: internal clocking, user clocking, Back the clock, Recovered clock etc.
6. Data transmission delay is small, the signal jitter, drift, to ensure the quality of TDM services
7. With a complete LED alarm function, user locate faults
8. IP network with excellent transmission performance
9. Configurable packet buffer space, making the E1 end-end delay within 1ms
10. Flexible bandwidth configuration, According to the number of E1 or IP network transmission bandwidth adjusts the number of E1 interface.
11. Configurable data packet size and the PSN throughput, delay equilibrium, transmission performance in layer 2 Ethernet
12. ASIC-based architecture provides a stable, high-performance, low processing delay circuit simulation solutions.
Specifications
E1 interface
Bit rate |
2048Kbpss±50ppm |
Amount |
4 |
Standard Protocol |
Support ITU-T G.703 /G.706/G.704 |
Code pattern |
AMI/HDB3 |
Physical interface |
RJ45(balance)/BNC(unbalance) |
Jitter |
ITU-T G.823 |
Impedance |
75Ω/120Ω |
Clock recovery precision |
100ppm/16ppb |
Ethernet electrical interface
Physical interface |
RJ-45 10Base-T/100Base-TX |
Transmission rate |
10M/100M self-adaption |
|
Standard Protocol |
SupportIEEE802.3/802.1P/802.1Q |
Working mode |
Full duplex/half duplex/ Auto-negotiation |
Ethernet optical interface
Physical interface |
LC(SFP) 100Base-FX |
Transmission rate |
10M/100M self-adaption |
|
Standard Protocol |
Support IEEE802.3/802.1P/802.1Q |
Working mode |
Full duplex/half duplex/Auto-negotiation |
|
Transmission power |
≥-5dBm |
Sensitivity |
≤-35dBm |
|
Wavelength |
1310/1550nm |
Transmission distance |
10KM 40KM up to 120KM |
Clock feature
Physical interface |
RJ-45 10Base-T/100Base-TX |
Transmission rate |
10M/100M self-adaption |
|
Standard Protocol |
SupportIEEE802.3/802.1P/802.1Q |
Working mode |
Full duplex/half duplex/ Auto-negotiation |
Power supply
AC |
220V |
DC |
-48V |
Working environment
Environment temperature |
0ºC~40ºC |
Relative humidity |
90% |
Application 1
Application 2
