IDM-30A Multiservice PCM Multiplexer
IDM-30A Multiservice PCM Multiplexer
|
Overview |

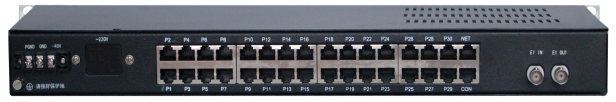

IDM-30A PCM multiplexer transmits at most 30 channels of voice/telephone or data signals over coaxial cable or twisted pairs. IDM-30A is modular equipment. It could accommodate more than 10 types of plug-in cards including FXO/FXS, 2/4-wire E&M, V.24, V.35, Magnet, Hotline etc. All plug-in replaceable cards could be inserted into or removed from the slots on the main board, which makes IDM-30A very flexible.
|
Feature |
v Transmission medium is E1
v All plug-in cards are replaceable. Users can replace the faulty cards instead of throw away the whole equipment.
v Standard 19” 1U housing, easy to install.
v Modular configuration makes it very flexible.
v DIP switch and LED alarm indication available.
v Dual power supply available.(-48VDC and 220VAC)
|
Specification |
E1 interface
|
Physical connector |
BNC |
Code |
HDB3 |
|
Compliance |
ITU-T G.703 |
Impedance |
75Ω |
|
Framing |
PCM30/31 |
Transmission |
Transparent transmission |
FXO/FXS interface
|
Loop current |
25mA |
Frequency range |
300Hz~3400Hz |
|
Impedance |
200Ω+560Ω//0.1μF |
Compliance |
ITU G.711 A-Law |
EM2/4 interface
|
Audio frequency range |
300Hz ~ 3400Hz |
Compression ratio |
Class A in ITU G.711 |
|
|
Echo loss |
>18dB |
Impedance |
600Ω balanced |
|
V.24 interface
|
Rate |
asynchronous <=9600bps and asynchronous 64kbps |
Comply with |
CCITT V.28 |
V.35 interface
|
Rate |
N×64KbpsN=0 ~ 31 |
Comply with |
ISO2593 |
|
|
Physical connector |
RJ-45 |
Comply with |
ITU-T V.35 |
|
Power supply and consumption
|
Power supply |
DC-48V /AC 220V/Dual |
Consumption |
≤60W |
Working environment
|
Temperature |
0ºC~40ºC |
Humidity |
≤90%( non-condensing) |
|

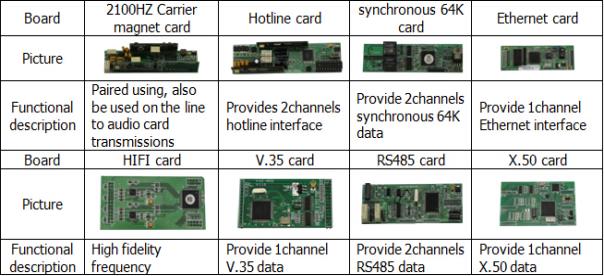

Card Board List |
|

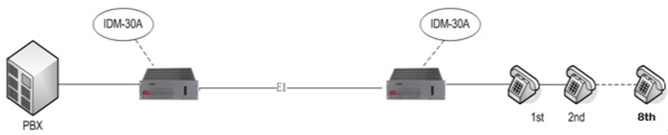

Application |
