IDM-NT204 datasheet

IDM-NT204 is a fixed configuration. It transmits 4 channels of FXO/FXS signal and 2 channels of 10/100M Ethernet signal over a pair of fibers (or one single fiber).
Contact Us

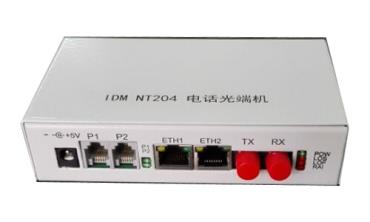

4 channels Multiservice Multiplexer IDM-NT204

Description

IDM-NT204 is a fixed configuration. It transmits 4 channels of FXO/FXS signal and 2 channels of 10/100M Ethernet signal over a pair of fibers (or one single fiber).


Features

l                      Transmission medium is fiber.

l                      Fixed configuration, not modular, cost-effective.

l                      Mini housing, small and compact, not standard 191U nor rack mountable.

l                      4 channels for telephone with caller ID display feature.

l                      2 shared 100M Ethernet channels and VLAN available.

l                      Perfect alarm indication function.



Specification

Physical connector

FC

Adaptive Fiber

Single/Dual Mode

Rate

155bps±50ppm

Wavelength

1310nm/1550nm

Consumption

-2-11dBm

Sensitivity

Better than -36dBm

Optical interface

Ethernet Interface

Physical connector

RJ-45

Rate

10/100Base-T

Comply with

IEEE802.3

Duplex

Full/Half duplex/auto-negotiation

FXO/FXS Interface

Audio frequency range

300Hz~3400Hz

Impedance

200Ω+560Ω//0.1μF

Compliance

ITU G.711 A-Law

Loop current

25mA

Power supply and Consumption

Power supply

DC-5V

Consumption

350W

Operating environment

Temperature

0 oC ~+50 oC

Humidity

95%( non-condensing)

Physical parameter

Dimension

17*11*3cm

Net weight

3KG

Package dimension

35*32.7*6.2cm

Package Weight

1.6KG (2pcs in a package)



Application
