IDM-ENT448 8 channel PCM telephone multiplexer
IDM-ENT448 8 channel PCM telephone multiplexer
一 Product Overview
IDM-ENT448 Telephone Optical utilize central office switches optical interface, digital trunked port or analog trunk port user interface, through IDM device will extend voice and data services to the user area, instead of remote small bureau, to achieve cross-border telephone numbers, defers exchange office role; to solve UTP constraints of transmission distance and the band that increase the range of services exchange office In urban areas.
二 Product Features
(1). Optical interface rate of 155Mbps, optical interface FC / SC / LC and other optional transmission distance
(2). Provides 4 Ethernet, 4-way share Ethernet speed is 100Mbps, can be divided into VLAN
(3). 4E1 service interface, BNC Connector
(4). 8 channels telephone service support Caller ID
(5). Improve the function control switch and alarm indicator
三 Specifications
Optical interface
|
Physical connector |
FC/ SC |
Mode |
Single mode/Multi-mode |
|
Rate |
155bps±50ppm |
Wavelength |
1310nm/1550nm |
|
Consumption |
-2~-11dBm |
Sensitivity |
Better than -36dBm |
E1 interface
|
Physical connector |
BNC |
Code |
HDB3 |
|
Compliance |
ITU-T G.703 |
Impedance |
75Ω(By default)/120Ω |
|
Framing |
PCM30/31 |
Transmission |
Transparent transmission |
Ethernet interface
|
Physical connector |
RJ-45 |
Rate |
10/100M Base-T |
|
Compliant with |
IEEE802.3 |
Duplex |
Full duplex/half duplex/ Auto-negotiation |
FXO/FXS interface
|
Loop current |
25mA |
Frequency range |
300Hz~3400Hz |
|
Impedance |
200Ω+560Ω//0.1μF |
Compliance |
ITU G.711 A-Law |
Power supply and consumption
|
Power supply |
DC-48V /AC 220V/Dual |
Consumption |
≤60W |
Working environment
|
Temperature |
0ºC~40ºC |
Humidity |
≤90%( non-condensing) |

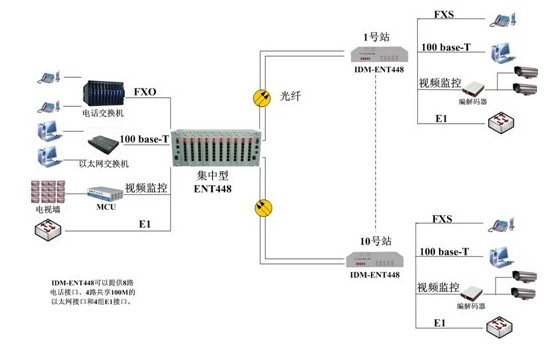

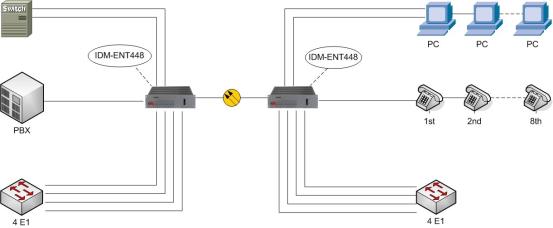

四 Application
