IDM DXC5000 time slot crossover device

This device can utilize 8 standard E1 transmission channels (G.703 standard), and directly provide various user interfaces such as voice, data, and image. Simultaneously, it has time slot non blocking cross connection devices between 8 sets of E1 and all user interfaces. At the same time, the device has multiple clock modes,
The number of 240 voice interfaces can be expanded through 8 E1 interfaces on the main control panel, and key units can adopt dual disk mutual backup.
Contact Us

IDM DXC5000 time slot crossover device



       Product Overview

The IDM DXC5000 time slot crossover device is one of the PCM time slot crossover devices designed by our company using dedicated large-scale integrated circuits. Connect between user terminal devices or between user terminal devices and the public switched telephone network through a 2M transmission medium.

This device can utilize 8 standard E1 transmission channels (G.703 standard), adopt PCM30/31 standard, and directly provide various user interfaces such as voice, data, and image. Simultaneously, it has time slot non blocking cross connection devices between 8 sets of E1 and all user interfaces. At the same time, the device has multiple clock modes, which can meet the clock requirements of various application environments.

The number of 240 voice interfaces can be expanded through 8 E1 interfaces on the main control panel, and key units can adopt dual disk mutual backup.

img1img2

       Product Features

(1).       19 inch 3U standard chassis, 2 power disk slots, 2 main control disk slots, and 12 business disk slots;

(2).       Dual 48V power supply, supporting 1+1 hot backup;

(3).       The DXC control panel provides 8 E1 interfaces and supports dual control mutual backup;

(4).       The DXC control panel provides user interface access and management, data and signaling cross connection, system synchronization, and device networking control and management;

(5).       Provide a complete set of 64K and N * 64K interfaces, and the types and quantities of services can be configured freely within the shelf. Each slot can output 8 or 10 64K services;

(6).       Supports FXS/FXO, magnet, 2/4-wire EM, RS232/RS422/RS485, GSM/CDMA services.

       Specifications

Code rate

2.048Mbps

Code

HDB3

Standard protocol

ITU-T G.703

Impedance

75Ω/120Ω

Frame structure

PCM30/32

signaling

Along the way signaling

Ethernet

Code rate

N×VC12N≤50





Standard protocol

IEEE802.3

Working type

Full / half duplex / adaptive

FXOFXS interface

Audio range

300Hz~3400Hz

Compression ratio

ITU G.711 A Law

impedance

Triple compound impedance 200 Ω+560 Ω//0.1 μ F

Loop Current

20mA

EM2/4 interface

Audio range

300Hz~3400Hz

Impedance

Balance 600Ω

Compression ratio

ITU G.711 A Law

Echo consumption

>=18dB

V.24 interface

transmission speed

Asynchronous ≤ 9600bps; Synchronize 64Kbps

Electrical characteristics

Compliant with CCITT V.28 protocol

V.35 interface

Interface type

RJ-45

Electrical characteristics

Compliant with ITU-T V.35 recommendation

transmission speed

n×64Kbpsn=031

Terminal interface

ISO2593

Power supply and consumption

Power supply

DC 12V

Consumption

≤12W

Environment Condition

Temperature

-20oC ~+50oC

Relative humidity

≤95%( non-condensing)

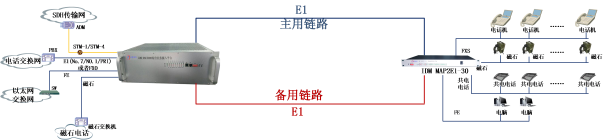

       Application

img3img4
