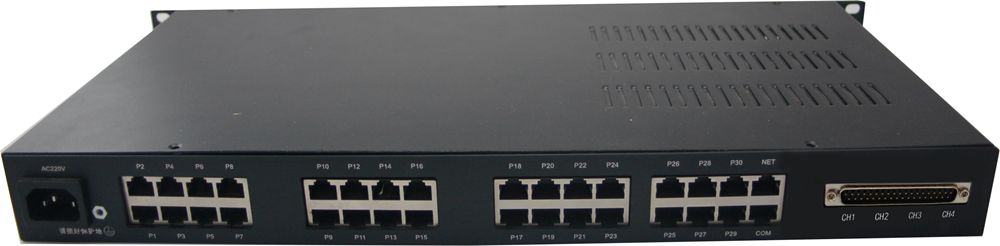

IDM MAP4E1-30 Integrated Business Cross Reuse Equipment

IDM MAP2E1-30

一       Product Overview

IDM MAP2E1-30 equipment is mainly used for service access and crossover of access layer in data communication network. With complete synchronization timing function, it support the non block cross connection of 64K level in the 2 channels E1. And also can provide 30 channels 64K services, including telephone, magnet telephone, electric magnet telephone and data services such as V.24.

二       Product Features

(1).       19” 1U PCM Multiplexer, 30 ports voice inserted

(2).       2 channels E1 access, 2E1 can be set to mutual backup

(3).       15 service card slots on the motherboard, each card can be up to two channels service. Voice interface can be FXO terminal automatic telephone and FXS telephone, MAG telephone remote automatic magnet; data service has V.24/RS232/RS485/RS422, X.50/X.58, 64K, Nx64K, Ethernet bridge.

(4).       Power supply: AC 220V/DC-48V, Dual power

三       Technology Parameter

1. E1 interface

2. Ethernet(FE)

3. Ethernet(GE)

4. FXO/FXS interface

5. 64K interface

6. EM2/4 Line interface

7. Magnet interface

8. V.24 interface

9. V.35 interface

10. Power supply

11. Environment condition

Application example
