IDM MSAP622 155 convergent optoelectronic integrated transmission equipment

convergent optoelectronic integrated transmission equipment，Integrating SDH transmission, PBX/IP-PBX switching, and all-optical Ethernet switching technologies, and integrating video and audio command and dispatch functions, it can be widely used in private networks such as public security, power, railways, and mines, as well as public networks such as China Mobile, China Unicom, and telecommunications

Contact Us

IDM MSAP622 155 convergent optoelectronic integrated transmission equipment

一 Product Overview

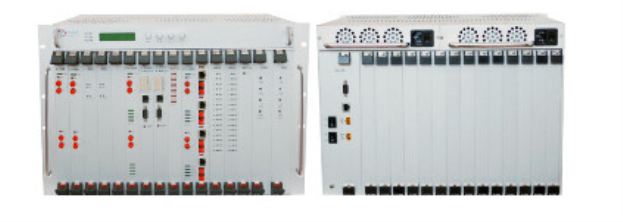

IDM MSAP622/155 device adopts 19” (6+1)U, Inserting disc structure. According to the actual needs, it can be configured with different numbers, different types of branch service, providing multi service access. It can provide STM-1/STM-4 optical interface, optical access disc type includes: STM-1 disk, STM-4 disk. It also can support gigabit Ethernet, fast Ethernet, E1 business, telephone business and various 64K business access.

$c:\users\administrator\appdata\roaming\360se6\User Data\temp\66559846b18636bf5a1b4e9153173ab8.jpg$ $c:\users\administrator\appdata\roaming\360se6\User Data\temp\3b9f8f754b3e1ffe341b5a833bcd917a.jpg$

二 Product Features

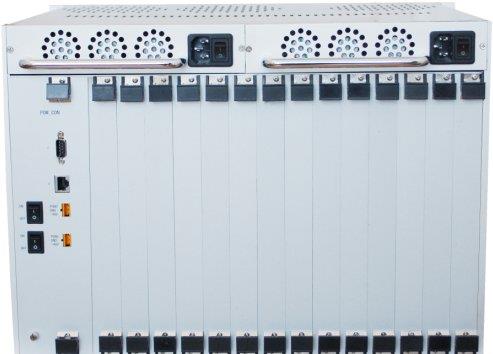

(1). Chassis structure using (6+1) U, insert disc design, 16 front insert slots and 12 post insert slots are provided.

(2). 2. Equipment is integrated with SDH transmission, PBX voice switching and Ethernet all optical switching technology.

(3). 3. The key function module provides backup function: STM-4 cross convergence disc, master control and power panel.

(4). 4. Flexible system design, the same equipment can be configured as TM, ADM or MADM mode

(5). Provide a variety of networking methods: point to point, link, ring network, star, tree type, ring cut ring, ring intersection, etc.

三 Maximum service interface

STM-4 interface: 20 STM-1 interface: 56

PDH optical interface: 44 E1 interface: 536

FE interface: 104 The maximum bandwidth of each FE interface is 50 VC12

GE interface: 16 The maximum bandwidth of each GE interface is 63 VC12

FXS/FXO/Magnet interface: 210 EM24 interface: 100 V24 interface: 210

Digital trunk interface: 8*N（N≤8）

6. Clock source can choose the line clock, external clock (2Mbit/s or 2MHz) and free oscillation

Provides Ethernet management channels based on DCC, E1, N*64K, and TCP/IP, SNMP simple network management protocol

7. STM4 cross convergence offers 4* STM-4 optical disk interface (optical line configuration for the STM-1 rate), Support any two ways of STM-4 port backup, Single disk provides 32 x 32 VC-4, 2016 x 2016 VC-12 and 512 x 512 64K time slots without blocking cross connect, support unidirectional, bidirectional and broadcast services

8. Stm1 cross convergence disc provides 2 Road STM-1 optical interface, supports two-way STM-1 burring mutual backup, single disc provides 441 * 441 vc-12 and 1024 x 1024 64K slot non blocking cross connections and support unidirectional, bidirectional, and broadcast service.

四 Specifications

Optical interface

Interface type	STM-4 SFP	Fiber mode	Single mode
Receiving / sending rate	622.08Mbps/622.08Mbps	Receiving / sending wavelength	1310nm/1550nm
Luminous power	-12~-6dBm	Receiving sensitivity	Better than -32dBm
Transmission distance	20Km，40KM, 60KM, 120KM
Interface type	STM-1 FC	Fiber mode	Single mode
Receiving / sending rate	155.52Mbps/155.52Mbps	Receiving / sending wavelength	1310nm/1550nm
Luminous power	-12~-6dBm	Receiving sensitivity	优于-32dBm
Transmission distance	20Km，40KM, 60KM, 120KM

E1 interface

Code rate	2.048Mbps	Code type	HDB3
Standard protocol	Support ITU-T G.703	Impedance	75Ω/120Ω
Frame structure	PCM30/32	Signaling	Channel signaling

Ethernet(FE)

Interface type	RJ-45	Transmission rate	N×VC12（N≤50）
Standard protocol	Support IEEE802.3	Work type	Full / half duplex / adaptive

Ethernet(GE)

Interface type	RJ-45	Transmission rate	N×VC12（N≤63）
Standard protocol	Support IEEE802.3	Work type	Full / half duplex / adaptive

FXO, FXS interface

Audio rage	300Hz~3400Hz	Compress ratio	ITU G.711
Impedance	200Ω+560Ω//0.1μF	Loop current	20mA/channel

Same direction 64K interface

Code type	G.703 standard	Code rate	64Kbps
Impedance	120Ω	ITU G.703

EM2/4 Wire interface

Audio rage	300Hz~3400Hz	Impedance	600Ω
Compress ratio	ITU G.711	Return loss	Better than 18dB

Magnet interface

Audio rage	300Hz~3400Hz	Impedance	600Ω
Compress ratio	ITU G.711	Return loss	Better than 18dB

V.24 interface

Transmission rate

≤9600bps；64Kbps

Electrical characteristics

CCITT V.28 protocol

V.35 interface

Code type	RJ-45	Electrical characteristics	ITU-T V.35
Transmission rate	n×64Kbps（n=0～31）	Terminal interface	ISO2593

Power and consumption

Power supply

AC220V/DC- 48V

Consumption

≤150W

Environment

Working temperature

-10oC ~+50oC

Humility

0~95%（No condensation）

Size

Length * depth * height

482×309×132(mm)

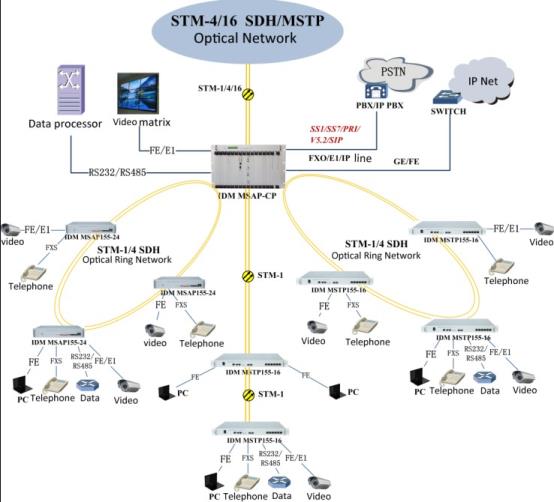

五 Application

$c:\users\administrator\appdata\roaming\360se6\User Data\temp\816e0fa6e3c5b4b5b80ff818ae8b451d.jpg$
