IDM CH GP4000-16E1

IDM CH GP4000-16E1 PDH Multiplexer

Overview

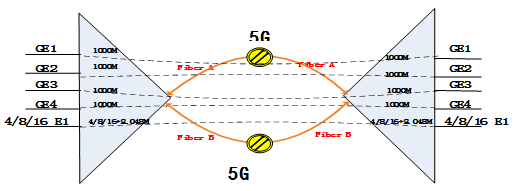

IDM GP4000 Gigabit Integrated Services Multiplexer is one of the PCM integrated service transmission equipments which are designed by the large-scale integrated circuit by our company. IDM GP4000 takes advantage of standard optical fiber transmission channel (G. 703 Standard) And it adopts PCM30/31 system and supports double fiber mutual standby . It directly offers voice, line speed 1000M Ethernet, E1 and other user interface. At the same time, the equipment can be installed simply and can be applied to all kinds of application environment.

Feature

v 1. Standard 19” 1U, easy to install

v 2. Provide 2 2.5Gbps SFP optical ports

v 3.Provide 4 physical isolation 1000M Ethernet interfaces

v 4. Provide 4/8/16E1 ports

v 5. Provide the standard SNMP interface

v 6. Provide perfect function control switch and alarm indication function.

Specification

Optical Interface

Interface	SFP	Transmit Mode	Single/ Multi-mode
Rate	2.5G	Wavelength	1310nm/1550nm
Radiant power	-1~-3dBm	Receive Sensitivity	Better than -24dBm
Distance	20KM, 40KM, 60KM, 80KM, 100KM, 120KM

E1 Interface

Bit rate	2.048Mb/s	Code type	HDB3
Standard Protocol	compliant with ITU-T G.703	Impedance	unbalanced 75Ωand balanced 120Ω
Frame structure	PCM30/31	Signaling	channel associated signalling
