IDM MP200-8E1 optical transceiver PDH Optical Multiplexer
IDM MP200-8E1
|
Overview |
IDM MP200-8E1 optical transceiver provides two sets of SFP optical interface, 8 E1 circuit, 2 sets of 100M line speed Ethernet interface. Can provide SNMP network management interface, improve the alarm monitoring function, high integration, low power consumption, stable performance, easy to use.
|
Feature |
v 19” 1U chassis, easy to install
v Support 2 way SFP optical transmission interface
v Maximum support 8 E1 interface, E1 interface 75 or 120 optional
v Can provide 2 sets of physical isolation of 100M Ethernet
v Standard models have no relay transmission distance of 20 km; more than the transmission distance can be customized
-48V DC and 220V AC, optional DC+DC, AC+AC, AC+DC dual backup power supply
|
Specification |
Optical interface
|
Interface type |
SFP |
Fiber mode |
Single mode/dual mode |
|
Rate |
250M |
Wavelength |
1310nm/1550nm |
|
Luminous power |
-12~-6dBm |
Receiving sensitivity |
Better than -32dBm |
|
Transmission distance |
20KM |
|
|
E1 interface
|
Physical connector |
BNC |
Code |
HDB3 |
|
Compliance |
ITU-T G.703 |
Impedance |
75Ω(By default)/120Ω |
|
Framing |
PCM30/32 |
Signaling |
Channel signaling |
Ethernet interface
|
Physical connector |
RJ-45 |
Rate |
N*VC12 (N<=50) |
|
Compliant with |
IEEE802.3 |
Duplex |
Full duplex/half duplex/ Auto-negotiation |
Power supply and consumption
|
Power supply |
DC-48V /AC 220V |
Consumption |
≤10W |
Working environment
|
Temperature |
-10oC ~+50oC |
Humidity |
0~95% ( non-condensing) |
|

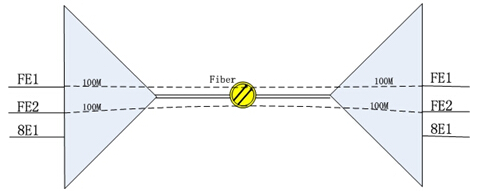

Application |
