IP voice access gateway, radio access gateway VoIP/SIP Gateways

Serial number

Product model

Function description


1

IDM-RG2000

Provide the conversion access function between two ordinary telephone and two-way radio interface; Audio input and output impedance 600Ω; 2 FXO relay telephone interface; audio interface is balanced input mode, Can be connected to the non balance (one end of the ground), Input impedance 600Ω;

2

IDM RG2000-IP

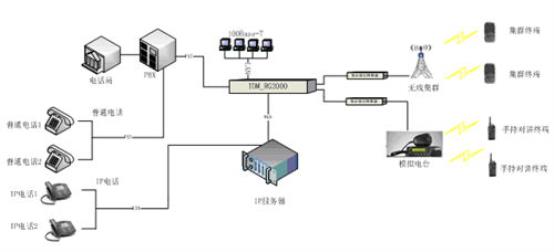

Support the conversion function two-way IP telephone/ ordinary telephone to two-way radio frequency interface. It consists three kinds of working modes: One to one direct mode between telephone and radio, the first road to two-way radio conference mode, the second way radio to two-way radio conference mode. The device’s IP phone supports the SIP protocol for the server and terminal docking. The common telephone interface can be used to connect the domestic hot telephone exchange equipment.

3

IDM IAD0 2

Provide one WAN port and four LAN ports, WAN port support port(RJ45) and optical port(FC), optical interface form can connect with the 100M media converter. Provide 2 ports analog telephone (FXS) and 1 ports for escape(FXO), the first telephone dial “0” can connect PSTN phone (or connect the PSTN through setting network management), When power off, the first phone is connected to the PSTN network.

4

IDM IAD 120

120 channels IP telephone gateway, Can be registered to the SIP server, support 30 channels telephone dial a call at the same time default.
