IDM IAD02 1FXO 2FXS VOIP Gateway Datasheet VoIP/SIP Gateways

1FXO 2FXS VOIP Gateway

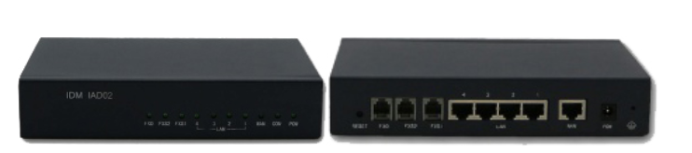

IAD02 IP protocol network is integrated access gateway, 2 channels analog telephone to IP network transmission access gateway. It can use SIP standard protocol and connect SIP Soft switch. And it provides VOIP/FOIP solutions for operators, enterprises and Residential users. Provide 1 WAN port and 4 LAN port, WAN port supports electrical port(RJ45) and optical port(FC), optical port can connect 100M media converter. Provide 2 FXS and 1 FXO. The first telephone dial “0” connect PSTN telephone(or via network management), and the first telephone access PSTN network when power down.

1.  Support SIP standard protocol, dual server registry settings. And call control center with double backup(in case of the network failure and ensure the normal service)

2.  Support VLAN divide, 802.1q protocol and 802.1p protocol. It can install business priorities and VLAN tag of voice and data flow. It will improve the protection ability of the business significantly.

3.  System support VPN(PPTP & L2TP).

4.  System registered to server via WAN port. You can login to the terminal via the WAN and LAN port for the configuration.

5.   Support T.38 Real-time fax.

6.  Support multiple ITU-T code standard (such as G.711, G.729A and G.723.1),dynamic jitter buffer management, Echo Cancellation. Technique(meet ITU-TG.168/165 standard),Packet Loss Concealment , VAD , CNG. It can place directly behind the ADSL. Modem, Autorun PPPOE protocol, start the enterprise Internet interface, automatically redial after PPPOE interruption.

7.   Support DHCP,DNS Client Agreement and can automatically obtain an IP address automatically

8.  It can intercom even upstream Internet interface interrupt, and also can dial the phone to ensure the normal service of business

9.Support WEB network management

Working environment
