IDM E1-ETH Converter PCM Multiplexer 4Ethernet interfaces, central equipment has one Ethernet port
In compliance with G.703/G.704 standard.
Unbalanced 75ΩE1 interface and balanced 120ΩE1 interface optional
4Ethernet interfaces, central equipment has one Ethernet port

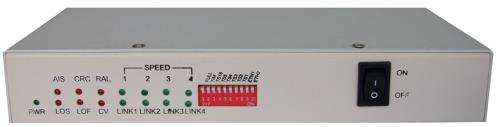

IDM E1-Ethernet converter
|
Overview |
|
Feature |
n In compliance with IEEE802.3 standard
n In compliance with G.703/G.704 standard.
n Unbalanced 75ΩE1 interface and balanced 120ΩE1 interface optional
n 4Ethernet interfaces, central equipment has one Ethernet port
|
Specification |
E1 interface
|
Interface type |
BNC |
Code rate |
2048Kbps±50ppm |
|
Signaling |
Channel associated
signaling |
Impedance |
75Ω(unbalance) |
|
Frame structure |
PCM31/30 |
Jitter |
Meet ITU-T G.823 |
|
Protocol standard |
Support ITU-T
G.703/G.704 |
Mode |
Framing/Unframed can set,
Time slot can match |
Ethernet interface
|
Interface type |
RJ-45 |
Interface rate |
10M/100M |
|
Protocol standard |
Support IEEE802.3 |
Work type |
Half/full duplex |
Power supply and consumption
|
Power supply |
DC-48V /AC 220V/Dual |
Consumption |
≤60W |
Working environment
|
Temperature |
0ºC~40ºC |
Humidity |
≤90%( non-condensing) |
|
Application |
