IDM OSW-10GE optical Ethernet switch OTN & PTN & DWDM & IPRAN Devices

IDM OSW-10GE optical Ethernet Switch can support two gigabit copper/SFP (mini GBIC) terminal interfaces which used for the flexible connection of gigabit copper or fiber. According to the different transmission distance, users can choose the 1000BASE-LX, 1000BASE-SX, 1000BASE-T an other interface type and support 8*10/100Mbps optical interface. The switch supports VLAV, port mirroring, port aggregation and QoS functions, can be easily configured through the WEB interface.
Contact Us

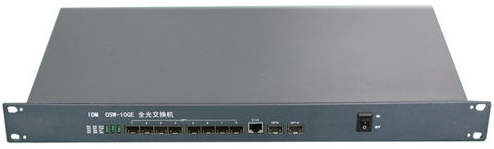

IDM 10GE optical Ethernet switch

IDM OSW-10GE optical Ethernet Switch can support two gigabit copper/SFP (mini GBIC) terminal interfaces which used for the flexible connection of gigabit copper or fiber. According to the different transmission distance, users can choose the 1000BASE-LX, 1000BASE-SX, 1000BASE-T an other interface type and support 8*10/100Mbps optical interface. The switch supports VLAV, port mirroring, port aggregation and QoS functions, can be easily configured through the WEB interface.

C:\Users\Administrator\AppData\Roaming\Tencent\Users\1632334951\QQ\WinTemp\RichOle\Y3%ONRMCH]XZWNY9@97C$BU.png





Product characteristic





Projec

Description



Standard

IEEE802.3 10BASE-T Ethernet

IEEE802.3u 100BASE-TX Fast Ethernet

IEEE802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3z Gigabit Ethernet (Fiber)

ANSI/IEEE 802.3 NWay Automatic negotiation

IEEE802.3x Flow control

Fixed interface

8*10/100Base-FX Adaptive Ethernet port

2 gigabit optical multiplexing ports

1 Console interfaces

Fixed port property

Connector type: RJ45

Support 10/100/1000Mbit/s transfer rate

Supports half duplex, full duplex, self negotiation mode

Support MDI/MDI-X adaptive

Cable type

100Base-TX：

5 kinds of twisted pair, support maximum transmission distance 100m

1000Base-T：

5 kinds of twisted pair, support maximum transmission distance 100m



Indicator light

Each port：Link/Act，Speed

Each equipment： Power

Function

Exchange mode

Store and forward mode

MAC address table

Support address automatic learning, automatic aging (aging time is 5 minutes)

Maximum support MAC (Access Control Medium) address: 8K

Length * width * height

440×230×44 mm

Standard 19 inch rack mounting width, 1U high

input voltage

100～240V AC,50/60Hz

power waste

最大15W

working temperature

0℃～40℃

Working humidity

5%～95%，Non condensation

Heat dissipation method

Natural heat dissipation

Software

VLAN

Based on port VLAN

Support VLAN maximum number: 26

Supports 128 VLAN VLAN, ID 1-4094 802.1Q can be equipped with

Priority queue (QoS)

Standard: 802.1p

Queue number: 4

Port aggregation

Can be set up to 3 sets of port aggregation

2 10/100Mbps port trunk (2 to 4 ports each road)

1 Gigabit port trunk (2 Gigabit ports)

Port Mirror

N:1

Port bandwidth control

The minimum particle size is 64Kbps

VCT

Support line diagnostic function

Configuration and management

web-based management

Support configuration file import / export
