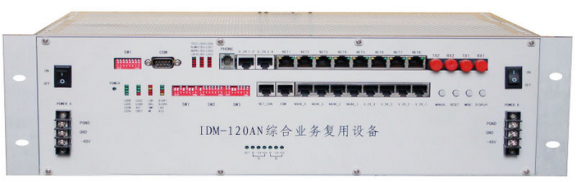

IDM-120AN PCM Multiplexer

Overview

IDM-120AN DXC multiservice multiplexer is a modular equipment. It has 16 slots to accommodate user’s slide cards, 15 of which are for FXO/FXS cards and the remaining one is for 4E1 DXC card.

IDM-120AN transmits 120 channels of voice/telephone, 8 channels of sharing 100Mbps Ethernet and 4 channels of E1 signals over a strand or a pair of optical fiber.

$C:\Users\Administrator\AppData\Roaming\Tencent\Users\1632334951\QQ\WinTemp\RichOle\_GD%%TYUTEZ6KGKOIN3QU@N.png$

$C:\Users\Administrator\AppData\Roaming\Tencent\Users\1632334951\QQ\WinTemp\RichOle\[O][A5X]QX{EX2W3@8SB)49.png$

Features

120 N×64K user’s channels

Modular structure and hot-swappable.

Configurable with multiple user’s slide cards.

Each user’s unit provides 8 user channels.

AC220V and DC-48V optional or dual power supplies.

The optical model (IDM-120AN) providing 4 E1 transparent transmission makes it very expandable.

Complete network management and acousto-optical alarm

Specification

Optical interface

Physical connector	FC/SC	Mode	Single mode
Rate	155Mbps±50ppm	Wavelength	1310nm/1550nm
Output power	-2~-11dBm	Sensitivity	Better than -36dBm
Transmitting range	Up to 100KM

E1 interface

Rate	2048Kbps	Line code	HDB3
Compliance	ITU-T G.703	Impedance	75Ω
Framing	PCM30/31	Signaling	Channel associated signaling

Ethernet

Physical connector	RJ-45	Ratae	10M/100M/auto-negotiation
Compliance	IEEE802.3	Duplex	Full/half duplex/auto-negotiation

FXO&FXS

Compliance	Law A in ITU G.711	Audio frequency range	300Hz~3400Hz
Impedance	200Ω+560Ω//0.1μF	Loop current	25mA

2/4-wire EM

Compliance	Law A in ITU G.711	Audio frequency range	300Hz-3400Hz
Impedance	Balanced 600Ω	Return loss	Not lower than 18dB

V.24

Rate

asynchronization≤9600bps/synchronization 64Kbps

Compliance

CCITT V.28

V.35

Rate

N×64Kbps(N=1~30)

Compliance

ITU-T V.35

Co directional 64K

Code	G.703 standard	Rate	64Kbps±100ppm
Impedance	Balanced 120Ω	Compliance ITU G.703

Working environment

Temp. (regular)	-15 oC ~+65oC	Storage temp.	-25oC~+75oC
Temp.(Industrial)	-40oC~+85 oC	Humidity	0~95%(Non-condensing)

Dimension, weight and consumption

L×D×H	482* 280 * 133 (mm)
Weight (when fully configured)	17Kg	Consumption (when fully configured)	Less than 150W

Application

$C:\Users\Administrator\AppData\Roaming\Tencent\Users\1632334951\QQ\WinTemp\RichOle\OTBE)T56AL]KHRJA_UU6SEH.png$
